Plugin Development

Clone the repos

This page is here just to describe the over-arching conventions needed to write your own plugin. The best way to get started is to clone an exisiting plugin, a list of ones is here

Overview

All plugin interaction in MonkeyPaste plugins uses a request/response format. Where MonkeyPaste is the client and the plugin acts as a server. Plugins, as far as MonkeyPaste is concerned are stateless in nature. There's no initialization or relative contexts, etc. just discrete requests and responses. This keeps it everything simple and minimalistic.

Getting Started

note

This assumes you are on Windows (10 or higher) and have an instance of Visual Studio already installed. But plugins can also be created on Mac or Linux with VS Code and OmniSharp for free.

Add the MonkeyPaste.Common.Plugin dll from nuget or the cli:

dotnet add package MonkeyPaste.Common.Plugin

info

Javascript and python plugin wrappers are currently in an alpha-stage of development. Check back on the plugin board for more updates!

A Minimal Analyzer Example

Code

../MinimalExample/MinimalExample.cs

using MonkeyPaste.Common.Plugin;

namespace MinimalExample {
    public class MinimalExample : MpIAnalyzeComponent {
        public MpAnalyzerPluginResponseFormat Analyze(MpAnalyzerPluginRequestFormat req) {
            return new MpAnalyzerPluginResponseFormat() {
                dataObjectLookup = new Dictionary<string, object>() {
                    {"Text", "Hello World!" }
                }
            };
        }
    }
}

Manifest.json

Every plugin must have a manifest.json file included in its bundle. It just provides basic meta and package information.

While testing, this is a minimal manifest.json for a plugin that only reads text and generates new text:

../MinimalExample/manifest.json

{
  "title": "Minimal Example",
  "guid": "aa4ceef6-e050-4ed5-b308-7c99942436c3",
  "analyzer": {
    "inputType": {
      "text": true
    },
    "outputType": {
      "text": true
    }
  }
}

Headless Components

The analyzer section of the manifest.json above can be omitted if your plugin implements MpISupportHeadlessAnalyzerFormat which lets you define your MpAnalyzerComponent at runtime (which is what the analyzer property is).

Headless is better

Headless is a better option in real usage but this is a minimal example. Look at some of the sample repos to learn more about MpISupportHeadlessAnalyzerFormat.

Required Fields:

Field	Detail	Test	Publish
title	Any name is fine but it must have one	✅	✅
guid	An RFC 4122 compliant 128-bit GUID (UUID) with only letters, numbers and hyphens	✅	✅
version	This defaults to 1.0.0.0. Setting it blank or improper formatting will mark the plugin invalid and it won't load. A major, minor, patch and revision format is required.	❌	✅
publishedAppVersion	The version of MonkeyPaste the plugin was published with. This can be found in the System Tray->About menu.	❌	✅
packageUrl	A publicly visible url to a zip compressed file (.zip) of the plugins published output.	❌	✅

Guid Generator

To get a nice guid or if you receive an InvalidPlugin error due to the guid value you provide, you can use https://www.guidgenerator.com with only 'Hyphens' checked (I think its default). The tool is free and what I use so MonkeyPaste should validate it fine if you run into issues (you probably won't).

Folder Structure

MinimalExample/
    MinimalExample.dll
    manifest.json

The only requirements for folder structure are that the manifest.json and plugin assembly (whichever references a MpIPluginComponentBase ie. MpIAnalyzeComponent or MpIAnalyzeComponentAsync) must be in the root folder and the root folder name must match the plugin assembly name.

Testing

Your plugin will be loaded automatically on startup once the plugin folder (MinimalExample/) is in MonkeyPaste's root plugin folder found by clicking the 📁 button in the Plugin Browser, adding your plugin folder there and then restarting the application.

You will get toast notifications of any issues initializing the plugin and some will give you the option to fix and retry the errors in realtime (the retry/fix options may not make sense to the error but occasionally can save you some time).

Beyond loading, debugging can be handled using errorMessage or userNotifications properties in the MpAnalyzerPluginResponseFormat that will be displayed as toast messages.

Avoid Repurposing paramid

Be sure to uninstall (in the Plugin Browser) your plugin BEFORE you change any MpParameterFormat.controlType's when your testing. It's just safer :)

Background

The only information stored for each plugin parameter is its paramId and its current value as a string. All other aspects are dervied from its MpParameterFormat.

For example if you test your plugin using a parameter that's a MpParameterControlType.TextBox with paramId="favorite-restaurant" and then later on try to test a MpParameterControlType.MultiSelectList using that same paramId="favorite-restaurant" you may encounter unpredicatable results.

The plugin cache (a subfolder in the plugin root directory called .cache) does its best to compare your manifest.json with what was used during last execution to deal with these kinds of changes but there are many unpredicatable circumstances that can botch up your plugin.

If your plugin becomes botched up you can uninstall it in the Plugin Browser then all its parameter data will be cleared and you can re-use the paramId safely.

Its just important to try to remember this circumstance and when in doubt, use the interface to formally uninstall it to clear data mismatches.

Debugging

You can enable step-tracing and debugging for your plugin by including symbol files (.pdb) in your plugin folder and then adding this line to your manifest.json:

../MinimalExample/manifest.json

...
"debugMode": "Debug"
...

Breakpoints & the lag of death

If you experience input (mouse or keyboard) lag while step-tracing use the DebugLocalInputOnly option instead of Debug where shown above (some application functionality will be limited).

Background

This is a threading issue between Visual Studio and the low-level global input listeners within MonkeyPaste on Windows only.

Attaching your Debugger

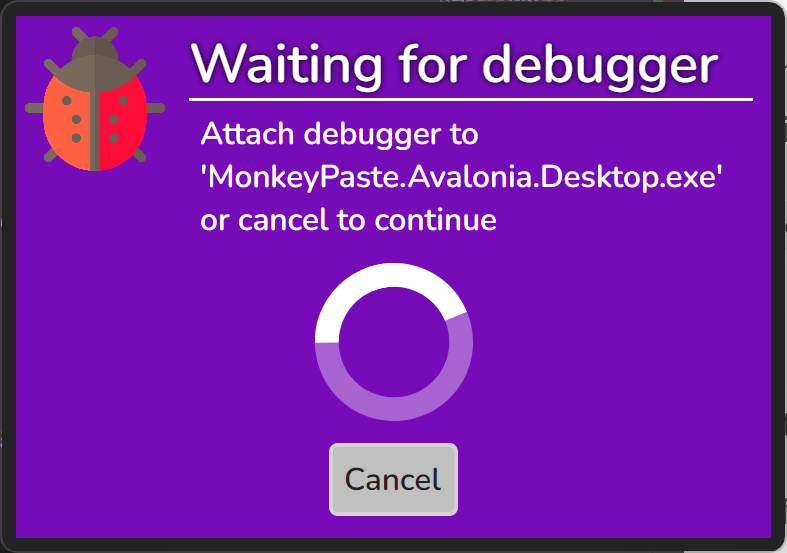

After you set debugMode in your manifest.json you should see something similar to below after starting up MonkeyPaste:

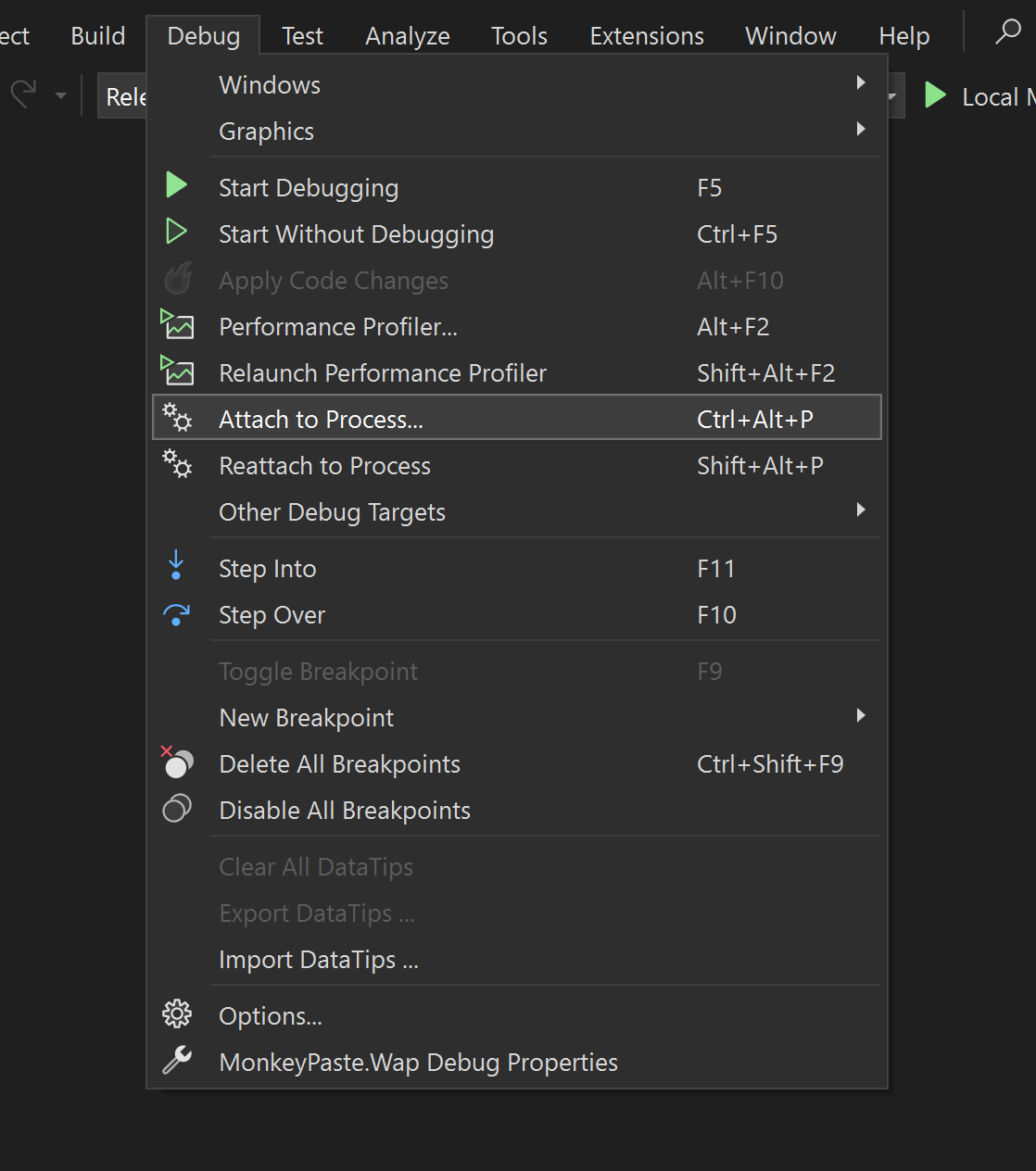

Then in your plugin project (assuming you're using Visual Studio) select Debug->Attach to Process....

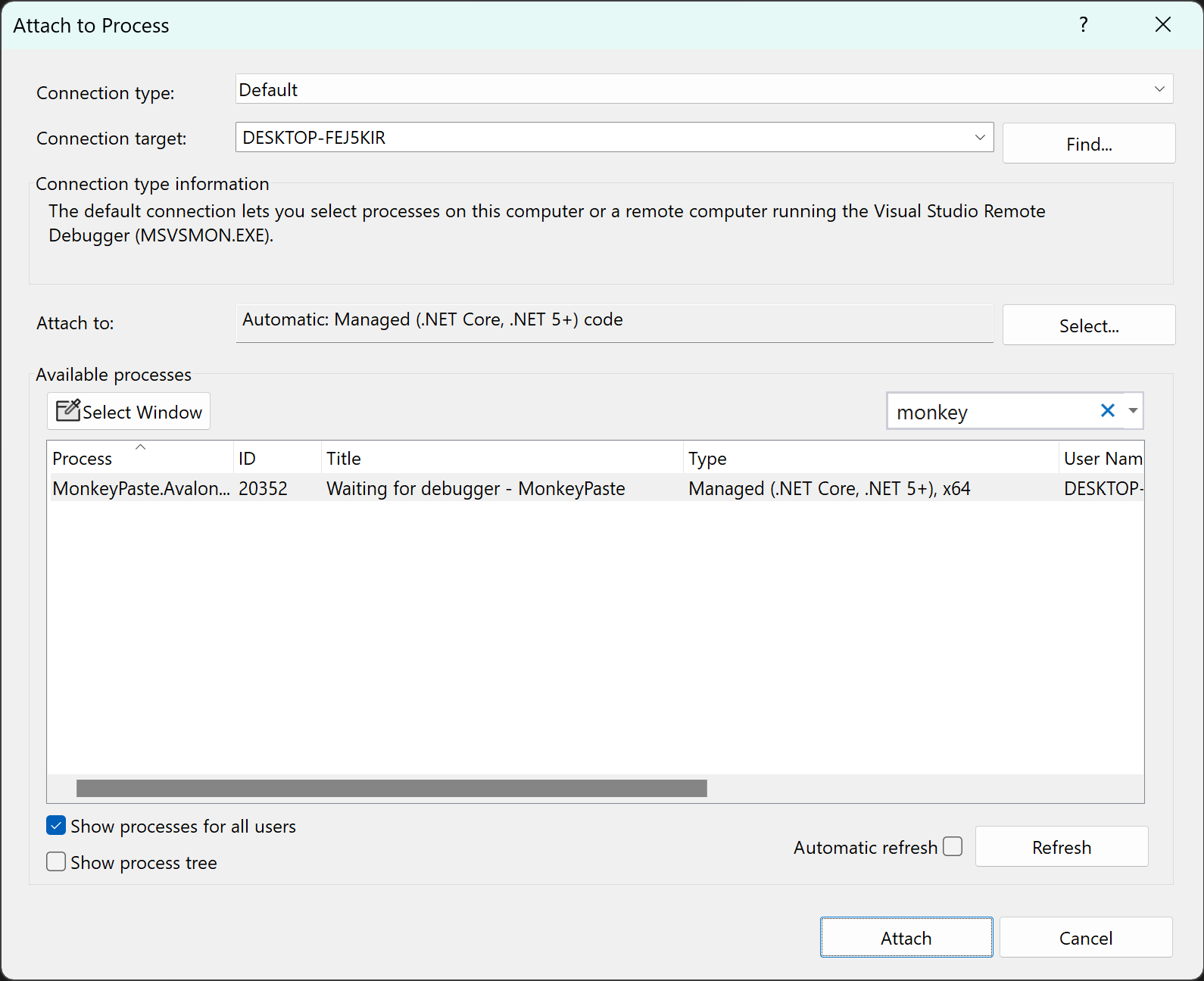

In the Attach to process menu type 'MonkeyPaste' in the search box, select it and click Attach at the bottom.

Now anytime code from your plugin is invoked your breakpoints will be hit.

More Info

If you encounter any problems attaching your debugger, you can check out the Visual Studio docs about attaching processes.

VS Code Support

You can debug your plugins with VS Code too, the process is a little more involved though. You can check out the VS Code docs on configuring VS Code for C# and the steps to attach to process there.

Publishing

Localizing

Explaining the details of localizing is outside the scope of this article. But if you look at any of the sample repos you may notice they all have ./Resources folders and the plugin ledger has a ./Cultures folder too.

It's not necessary to follow the sample's localization conventions but you can with your manifest.json. The neutral language is English(en-US) and the root level manifest.json should be the neutral manifest. All languages you want to support will need their own ./Resources/manifest.<culture-code>.json file.

Packaging

Your release needs to be a zip file where the contents is your plugins container folder not the contents of the folder. The name can be whatever you want.

The .zip file should look something like this:

v1.0.0.zip/
    MinimalExample/
        ...(all other deps)
        MinimalExample.dll
        manifest.json

Make sure all your plugins dependencies are included doing something similar to:

dotnet publish -c Release

Releasing

For the time being you need to fork https://github.com/monkeypaste/ledger project, add your manifest.json to the array in ledger.json and and issue a pull request on it. This is tentative though and may change so check back here for any updates about releasing.

Samples

These are plugins I've made and they all should be available from the Plugin Browser to use right away. You can also clone one to help get you started.

They all are fairly simple. Only a few small classes that you can adapt for your own ideas.

Check the Remarks sections on each project readme (also in the Plugin Browser) to see the plugin-related techincal aspects that particular plugin exemplifies, then you can blend those concepts together for your stuff.

Project Repo
ChatGpt
ComputerVision
FileConverter
GoogleLiteTextTranslator
QrCoder
TextToSpeech
TextTranslator
WebSearch
YoloImageAnnotator

API Documentation

Feedback

Feel free to raise an issue at https://github.com/monkeypaste/MonkeyPaste.Common.Plugin or check out the Forum
